Tu-214

Tu-214

information

ABOUT THE PLANE

ABOUT THE PLANE
Development:
PJSC «Tupolev»
Manufacture:
KAZ named after S.P. Gorbunov
First flight:
1996

Tu-214s are modern efficient long-haul narrow-body twin-engined aircraft with high fuel saving and comfort level.  Tu-214 passenger aircraft and ПС-90A engines are certified by IAC AR and fully comply with international requirements for environmental noise and hazardous emission to atmosphere.

Design features

The competitiveness, high performance and efficiency in operation of Tu-214 aircraft are due to:

  • State-of-the-art aerodynamic configuration
  • High aerodynamic quality
  • Perfect design of the airframe and equipment systems
  • State-of-the-art integrated flight and navigation system
  • Up-to-date efficient engines

Flight performance

Maximum flight altitude 10,1-12,1 km
Maximum take-off weight 110,750
Max speed 850 km/h
Aircraft length, m
46.20
Aircraft height, m
13.90
Wing area, sq. m
59 000
Empty weight, kg
59,000
Maximum take-off weight
110,750
Engine type
2 х turbofans PS-90А
Thrust, kgf
2 х 16,000
Cruise speed, km/h
850
Operational range, km
6,500
Service ceiling, m
12,000
Wingspan, m
42.00

Tu-214-based aircraft

Изображение самолета

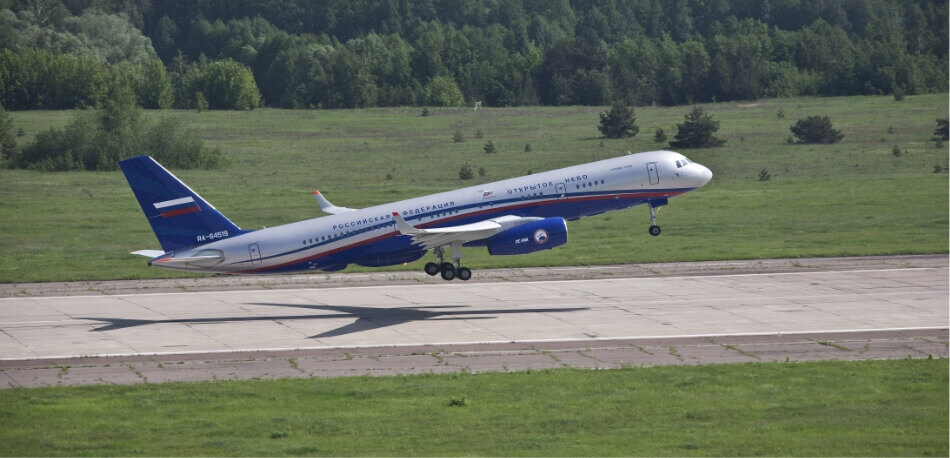

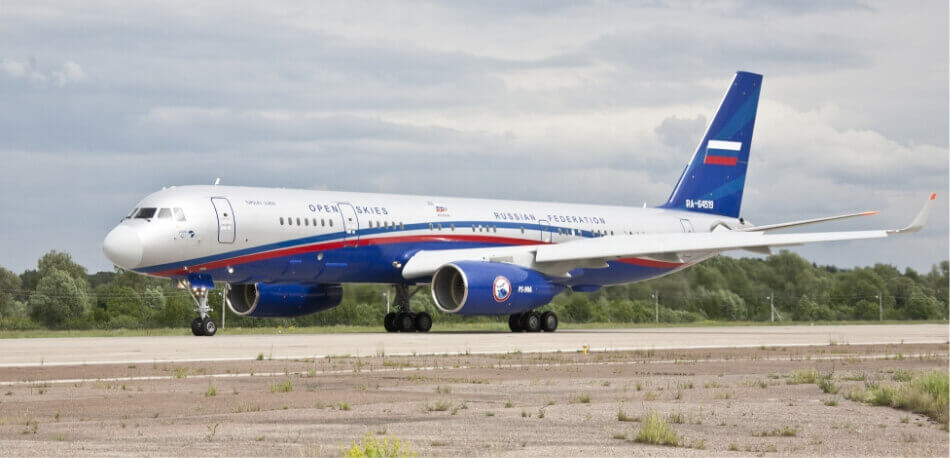

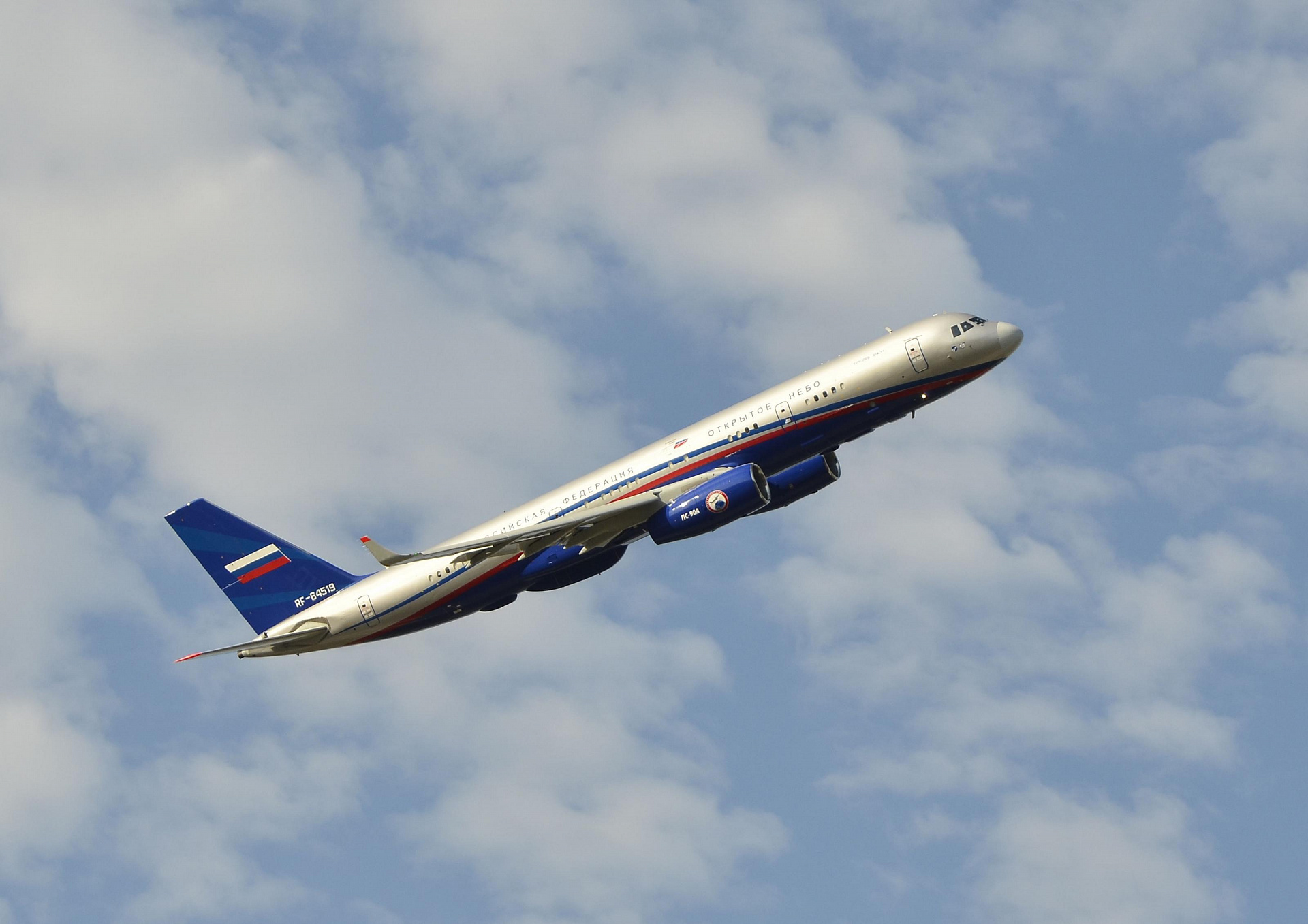

Tu-214OS
Observation aircraft
First flight:
2011
Production:
Two Tu-214OS aircraft were assembled at the Kazan aviation factory named after S.P. Gorbunov.
Tasks:
  • Transit flights along international routes in compliance with published standards and recommendations of ICAO, as well as air traffic control instructions, Treaty participating countries procedures and guidelines for flights safety
  • Observation flights according to the plan of the “Open Skies” Treaty missions. Observation flight route and flight profile shall meet the requirements of flight safety according to standards and recommendations of ICAO with due regard for national flight rules
  • Demonstration flights and flights for data collection during preparation for certification of the carrier aircraft and during certification of the aircraft
